Cutting Tools

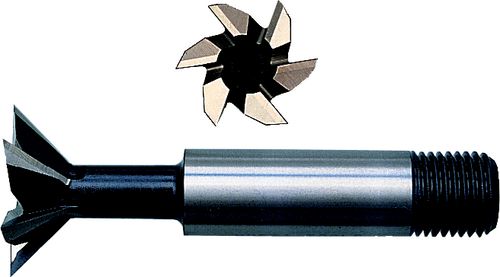

Sherwood HSS Threaded Shank Dovetail Cutters - 45° Corner Angle, Metric 45° Corner Angle - Metric (Form C) Designed to produce dovetail slideways in machine tool tables, jigs and fixtures. Bright finish, straight helix. Made to DIN 1833. Shank to DIN 1835D. Metric diameter tolerance: + 0.25 - 0.00.... >>

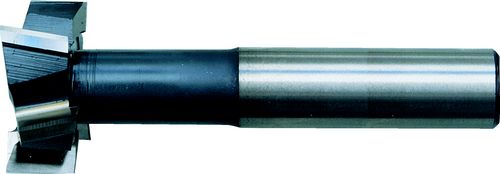

Sherwood HSS Plain Shank T-Slot Cutters Used for machining T-slots on slide tables, fixtures etc. to DIN 650. For milling structural, carburising and heat treated steel up to 900N/mm2. Sizes up to 16mm and 1/2” have 6 flutes and 18mm and 5/8” upwards have 8 flutes. Made to DIN 851. Flute form 12° RH/LH Metric Limits of Tolerance D.... >>

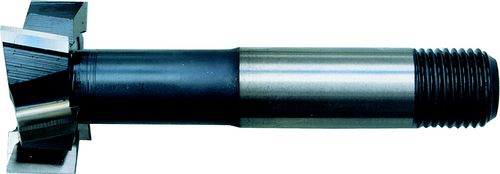

Sherwood T-Slot Cutters Threaded Shank HSS - Metric Used for machining T-slots on slide tables, fixtures etc., to DIN 650. For milling structural, carburized and heat treated steel up to 900N/mm2. Sizes up to 16mm and 1/2" have 6 flutes and 18mm and 5/8" upwards have 8 flutes. Made to DIN 851. Shank to DIN 1835/D. Flute form 12° RH/L.... >>

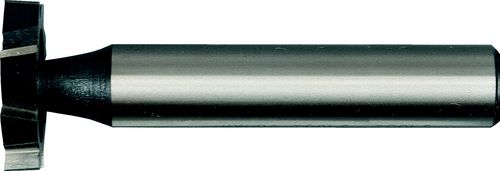

Sherwood HSS Plain Shank Woodruff Cutters 12mm/1/2” Shank Ø Produces closed slots for woodruff keys to DIN 6888. For milling structural, carburizing and heat treated steel up to 900N/mm2. Manufactured to BS 122 : Part 4 : 1980. Made to DIN 850. Metric Limits of Tolerances Diameter: + 0.000 -0.127 Width 2 up to 4: - 0.014 -0.028 Width.... >>
